Profiled Router Bits
Metal or steel shaped cutters are all those cutters that have the part of the cutting edge that is not vertical or horizontal, but "retort" by taking a shape (e. g. a radius is a template, so the cutter will be shaped - unlike the straight channel cutter)
The contoured cutting edge, in turn, can be slightly inclined (oblique) and serves to work much more smoothly the wood allowing your cutter to "eat" differently than the other thousand cutters on the market, making your milled material smoother and without a shadow of a doubt with far fewer burns.
This last type of cutting edge, called "axial cutting edge", is the only one we have adopted in our cutters, a fixed point for a sturdy Fraiser.
There are many types of shapes, from the simplest as a radius, to a more complex as multi-profile can be (then we will see it together, however it serves to make more profiles with a cutter)
How do I recognize those HM carbide carbide and SP steel ones?
The carbide cutters, also known as widia - HM cutters, appear immediately to the eye for their brazed plate, i. e. that the cutting edge of the cutter (recognizable because it is different in colour from the body) is welded to the steel body.
On the other hand, the cutters made of SP steel have the cutting edge of the same material as the tool body and it can be recognised not only that there is no welding on the cutting edge, but also that the cutter is lighter.
The latter are quite outdated and, for now, we have no demand and need to put them in stock, by far the carbide one is much better for all the reasons listed above.
If you want to go deeper into the topic click here and you will open an article that I wrote in the blog where I talk about how to choose a cutter and, inside, there are also detailed explanations of the types of material.
How is the carbide or steel cutter used?
FR. 201 - Cutting cutters with combined cutting edges - Carbide
It is used to cut, trim and bevel all types of laminate without having to change tools and at the same time without sacrificing a high standard of machining.
FR. 202 / FR. 205 / FR. 206 / FR. 207 - Concave/convex radius milling cutters with bearing - Carbide
They are used to create simple and elegant finishes on your furniture, drawers, doors, creating convex or concave profiles as a final touch, using a beam with belly or rounded.
FR. 203 / FR. 204 - Bevel milling cutter with and without bearing - carbide
Use a slightly beveled edge or decorative cut. With bevel cutters with or without bearing, you can really do your best.
FR. 208 - dovetail cutter for grooves - carbide
Use these cutters to create beautiful, sturdy and durable joints thanks to the ideal cutting angles for this type of joint. Fraiser guarantees robustness and successful machining!
FR. 209 / FR. 212 - Cutting and engraving cutter - Carbide
They are suitable for clean and precise cutting cutters on wooden panels or drawers, bevel edges or pantographing beautiful letters. A model and strength point for the Fraiser series of shaped cutters.
FR. 210 / FR. 211 / FR. 228 / FR. 229 - HW profile cutter with and without bearing - carbide
These cutters offer new decorative possibilities for woodworkers who need to expand their range of decorations.
FR. 214 / FR. 215 / FR. 216 / FR. 217 - Flatband cutter - carbide
Cutter with carbide plates for flat band plates, designed for the production of doors for kitchen furniture but also for cabinet or cabinet doors and drawer panels.
FR. 219 / FR. 220- Cutter for perlineates - carbide
Cutters for bead and floor jointing. The component parts are interchangeable so as to change the cutting mode, but using the same cutter
FR. 221 / FR. 222 / FR. 223 / FR. 224 / FR. 225 / FR. 226 - Carbide bur for carbide doors
Cutters to carry out all the most beautiful and different doors that can come to mind. The component parts are interchangeable so as to change the cutting mode, but using the same cutter
FR. 227 - Multi-profile milling cutter - Carbide
One single cutter to execute 9 profiles, i. e. several machining operations, in one. What could I add? Nothing J

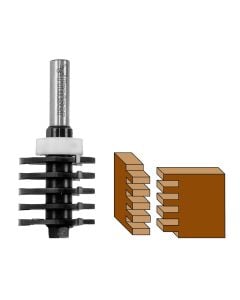

FR. 230 / FR. 231 / FR. 232 / FR. 233 - Jointing cutter - Carbide
Line of shaped wood cutters for making any kind of joint that is more comfortable for you. You can make joints and joints of the highest level, such as those made by specialists in the world of furniture and expert craftsmen.
FR. 234 - Handle cutter - carbide
Use this cutter to create two handles on wood, useful for those who decide for themselves to use this tool.
Technical characteristics of the carbide milling cutter
1 - Super resistant steel ball bearing, radial with a single row of balls able to guarantee smooth and smooth running without jamming in every machining operation.
2 - BLK coating, unlike painting, the coating is the result of heat treatment and ultrasound, ensures a better robustness and a long lasting smoothness, specifically for wood.
3 - Mirror finish, for a sharpened cutting edge with special degrees, allowing a 3 times longer "thread" duration than almost all other sharpenings, and axial angle, favouring a continuous contact with the wood during processing for a clean and unbreaked machining.
4 - Anti-kickback design, for a greater sense of safety during tool feed, able to make you mill in complete peace of mind.
5 - Super-resistant and sharp tungsten carbide body in certified micro-grain for maximum robustness and durability of your milled material.
The metal and steel shaped milling cutter is a cutter suitable for everyday use and is very versatile thanks to its low cost and versatility
A sturdy straight steel and carbide Fraiser has a minimum durability of 3 times more than an economical alternative thanks to our certified materials and custom treatment
